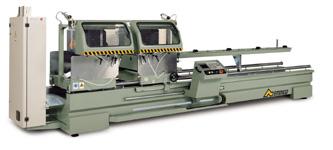

Twin-head cutting-off machine

| | | | | | |

Twin-head cutting-off machine

Twin head cutting-off machine, 3 axes

Twin head cutting-off machine, 3 axes, automatic traverse of the moving cutting head and electronic control of all the angular setting from 45° (internal) to 22°30’ (external) with an accuracy resolution on each degree of 240 positions.

Technical data

Blade spindle diameter: 32 mm
Blade diameter: 500 mm
Blade drive r.p.m. (50 Hz): 2800 giri/m
Maximum cutting lenght: 4000 - 5000 - 6000 mm
Minimum cutting lenght at 90°: 350 mm
Weight (4000 mm ver.): 1620 Kg
Weight (5000 mm ver.): 1760 Kg
Weight (6000 mm ver.): 1910 Kg
Blade drive motor power: 2,2 kW
Total installed power: 7 kW
Pressione d'esercizio: 6 ÷ 8 bar
Blade feed rate: 0 ÷ 60 mm/s
Cutting speed: 73 m/s
Head carriage traversing speed: 20 m/min

For technical information, please contact us
