Automatic twin-head cutting machine

| | | | | | |

Automatic twin-head cutting machine

CLASSIC

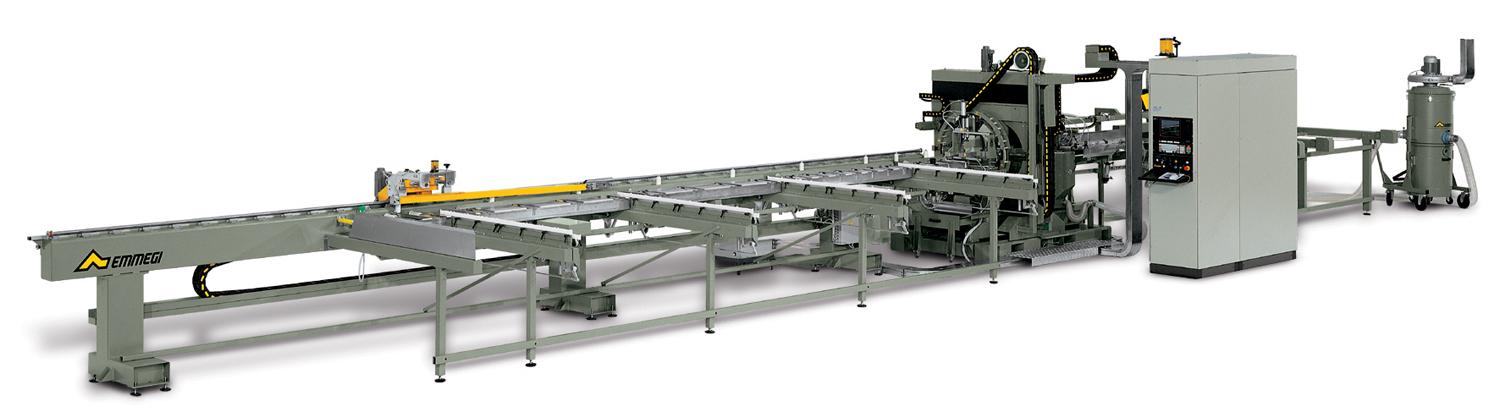

Automatic twin-head cutting machine

Electronic twin head cutting-off machine with automatic positioning of the movable head.

Technical data

Blade spindle diameter: 32 mm
Blade diameter: 500 mm
Blade diameter: 450 mm
Blade drive r.p.m. (50 Hz): 2800 giri/m
Maximum cutting lenght: 5000 mm
Minimum cutting lenght at 90°: 240 / 310 mm
Minimum cutting lenght at 90° (with profile height read-out): 260 / 310 mm
Weight: 3410 Kg
Blade drive motor power: 2,2 kW
Total installed power: 5,3 kW
Pressione d'esercizio: 6 ÷ 8 bar
Blade feed rate: 0 ÷ 60 mm/s
Cutting speed: 66 / 74 m/s
Head carriage traversing speed: 20 m/min

For technical information, please contact us
