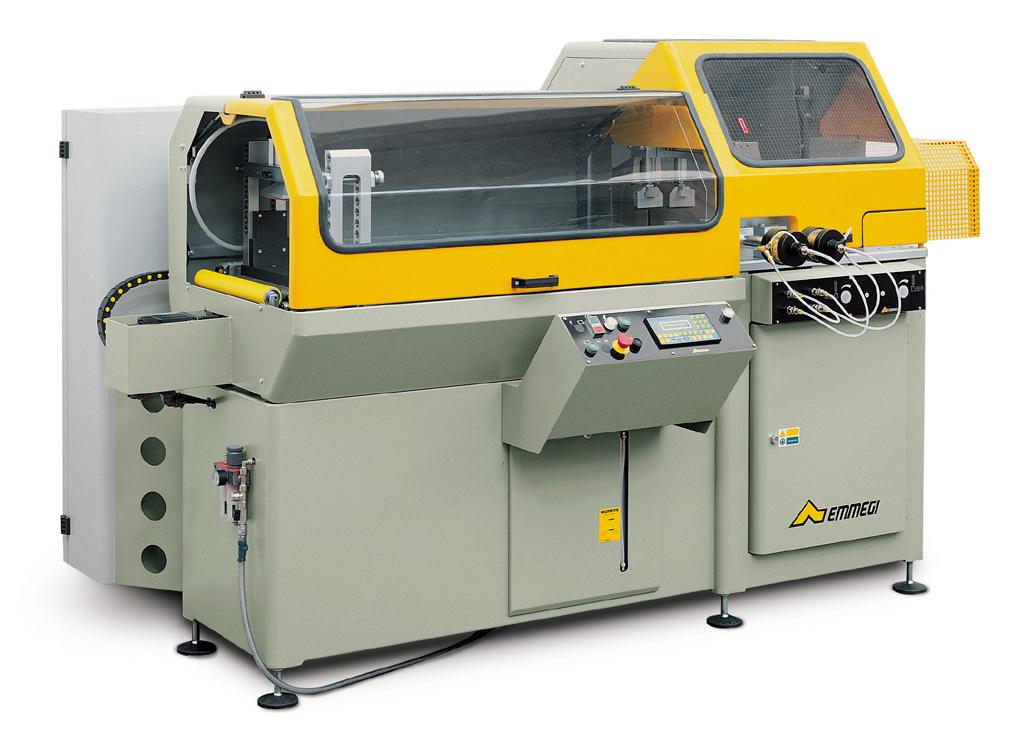

Single-head, rising blade cutting-off machine with automatic cycle only for 90° cutting, equipped with N/C electric bar feed with positioning tolerance in cutting down to ± 0.05 mm and cut piece separator system.



Machine characteristics
Pure oil blade coolant system (Lubrica)
Pressure reducers with pressure gauge for clamps
Digital displays for presetting cutting lengths
Provision for swarf exhauster
Blade swarf conveyor



Technical data
- only for 90° cutting
- carbide tipped blade ø 450, 500, 550, 600 or 650 mm
- feeder stroke: from 0 to 1000 mm (electric)
- tolerance on repeatability of feeder positioning: ± 0.05 mm

Single-head, rising blade cutting-off machine with automatic cycle only for 90° cutting, equipped with automatic bar feeder with mechanical stop device, adjustment of length and tolerance in cutting ± 0.1 mm and pneumatic cut piece separator system. The cutting cycle is controlled by a PLC.



Pure oil blade coolant system (Lubrica)
Pressure reducers with pressure gauge for clamps
Digital displays for presetting cutting lengths
Provision for swarf exhauster
Blade swarf conveyor (optional)

Technical data
- only for 90° cutting
- carbide tipped blade ø 450, 500, 550, 600 or 650 mm
- feeder stroke: from 0 to 800 mm (hydraulic)
- tolerance on repeatability of feeder positioning: ± 0.1 mm



Single-head, rising blade cutting-off machine with automatic cycle only for 90° cutting, equipped with profile bar feeder with mechanical stop device and adjustment of length and tolerance in cutting down to ± 0.1 mm. The cutting cycle is controlled by a PLC.
