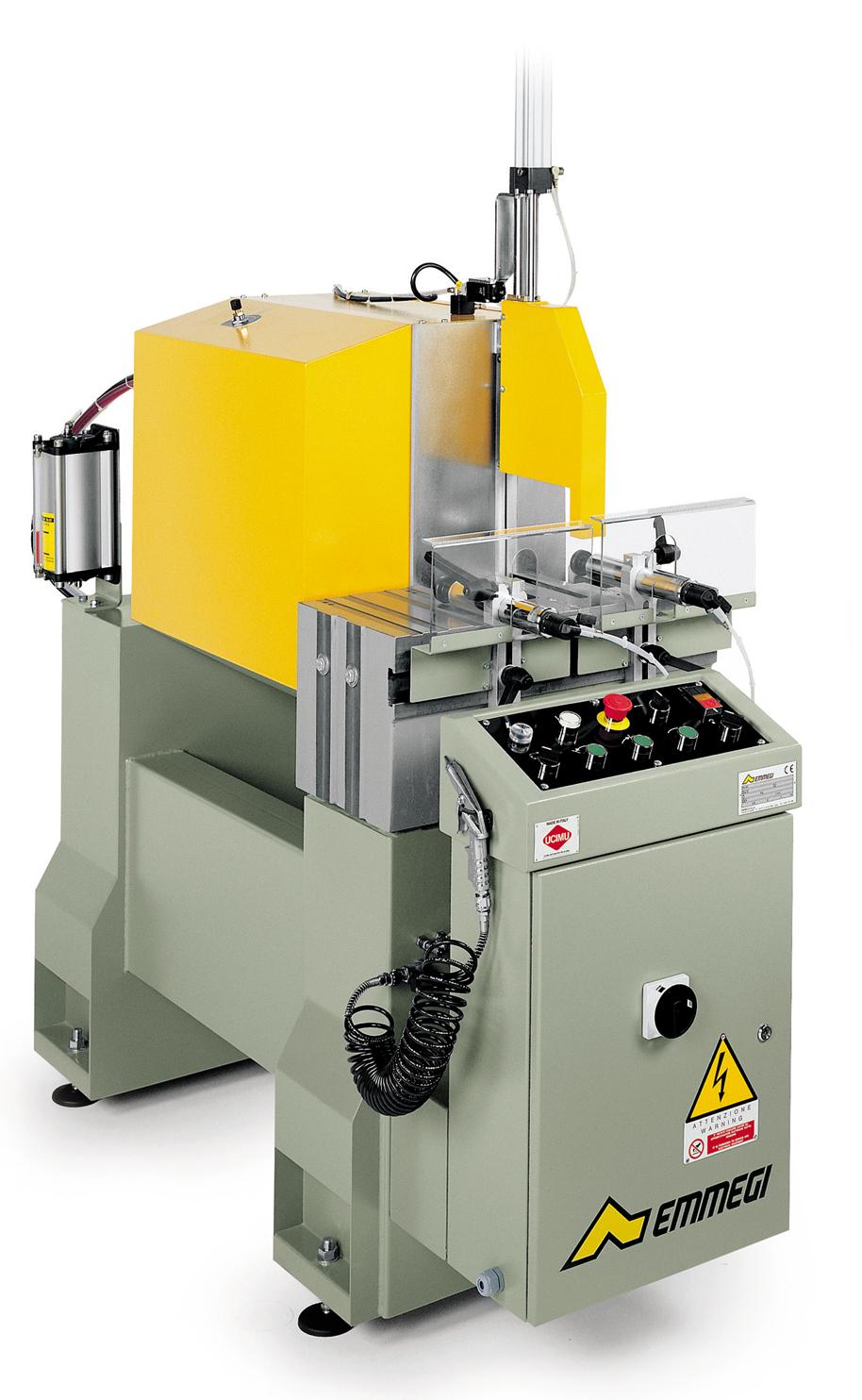

VEGA
Single-head cutting-off machine with left loading side, horizontal blade feed, pneumatic double side head tilting for
cuts at 45° left, 90°, 45° and 22°30’ right (fixed). A special positive stop also allows cutting at intermediate angles.
Machine characteristics
Pair of horizontal pneumatic clamps with low pressure device
Vertical
clamps (optional)
Blade guard with pneumatic lowering
Oil-mist blade lubrication
Hydro-pneumatic blade outfeed
Pnuematic blade tilting
Technical data - blade ø 450 o 550 mm
VEGA D
Single-head cutting-off machine with right loading side, horizontal blade feed, pneumatic double side head tilting for
cuts at 45° left, 90° and 45° right (fixed). A special positive stop also allows cutting at intermediate angles.
Machine characteristics
Pair of horizontal pneumatic clamps with low pressure device
Vertical
clamps (optional)
Blade guard with pneumatic lowering
Oil-mist blade lubrication
Hydro-pneumatic blade outfeed
Pnuematic blade
tilting
Technical data - blade ø 450 o 550 mm
VEGA 400 S
Single-head cutting-off machine with horizontal blade feed, double side head tilting at fixed positions through a positive
stop for cuts at 45° left, 90°, 45° and 30° right as well at intermediate angles. Manual blade feed.
Machine characteristics
Pair of horizontal pneumatic clamps with low pressure device
Vertical
clamps (optional)
Oil-mist blade lubrication
Manual cutting head tilting wih pneumatic locking
Manual blade outfeed
Technical
data - blade ø 400 mm
