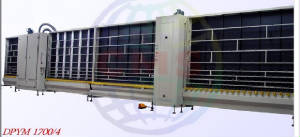

Glass Washing Machine


Manual Combining - Washing Line with Roller Press


Machine Characteristics
  • Stainless steel, noise-isolated and open top washing cabin
  • 4 units of balanced brush rollers in the washing unit revolving at high speed
  • Adjustable glass movement speed
  • High accurancy brushes that can wash coated glass
  • Homogeneous brush contact for different glass thicknesses
  • Drying fan equipped with a heater placed in a noise-isolated housing
  • Stainless steel water tank equipped with a heater
  • Float-valve system for controlling the water level in the water tank
  • Standard working direction from left to right
  • Manually adjustable pressing pressure for different glass sizes
  • Electrical system compliant with general safety rules
Technical Characteristics

Processable Size

 :

Min: 170 x 350 mm Max: 1700 x 2700 mm

Processable Thickness

 :

2-12 mm (Optional : 2-19 mm)

Overall Width

 :

1800 mm

Overall Lenght

 :

15100 mm

Overall Height

 :

3381 mm

Weight

 :

2300 kg

Voltage

 :

400V 3 NPE AC

Frequency

 :

50 Hz

Cable Cross-Section

 :

WP: 4 x 2,5mm˛+PE RP: 4 x 6mm˛+PE

Total Power

 :

WP: 16 kW RP: 0,55 kW

Air Pressure

 :

6 bar

Air Consumption

 :

8 lt / min

Noise Emission Level

 :

75 dB (A)

For technical information, please contact us
