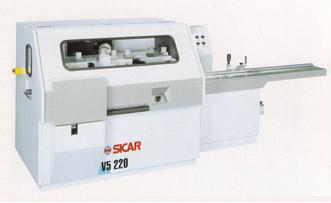

| 4-side planing machine with 4 or 5 spindles |
|
V4 |
V5 |
| Max. working width |
mm |
220 |
220 |
| Min. working width |
mm |
35 |
35 |
| Max. working height |
mm |
120 |
120 |
| Min. working height |
mm |
8 |
8 |
| Min. working lenght |
mm |
360 |
360 |
| Spindle rotation speed |
g/min
r.p.m. |
6000 |
6000 |
| Spindle shaft diameter |
mm |
40 |
40 |
| Cutterblock diameter (1st. S.) (planer) |
mm |
125 |
125 |
| Diameter of cutter on 1st spindle |
mm |
140 |
140 |
| Tool diemeter 2nd |
mm |
145 |
145 |
| Tool diemeter 3rd |
mm |
145 |
145 |
| Tool diemeter 4th |
mm |
150 |
150 |
| Tool diemeter 5th |
mm |
* |
150 |
| Max. lowering of 2nd and 3rd |
mm |
10 |
10 |
| Tool diameter 1st (planer) |
mm |
220 |
220 |
| Tool diameter 2nd |
mm |
120 |
120 |
| Tool diameter 3rd |
mm |
120 |
120 |
| Tool diameter 4th |
mm |
220 |
220 |
| Feed speed |
mm |
6-12 |
6-12 |
| Feed roller diameter |
mm |
140 |
140 |
| Steel feed rollers |
N° |
4 |
4 |
| Rubberized feed rollers |
N° |
2 |
2 |
| Max. cutting depth with planer |
mm |
8 |
8 |
| Power motor on 1st - 4th |
HP
KW |
5,5 + 5,5
4 + 4 |
5,5 + 5,5
4 + 4 |
| Power motor on 2nd - 3rd |
HP
KW |
5,5 + 5,5
4 + 4 |
5,5 + 5,5
4 + 4 |
| Power universal motor |
HP
|
5,5 |
5,5 |
| Feed motor power (4pcs) |
HP |
0,75 + 1,1 |
0,75 + 1,1 |
| Automatic lifting motor power |
HP |
0,35 |
0,35 |
| Suction hood diameter (4pcs) |
mm |
N°3 Ø 120
N°1 Ø 140 |
N°3 Ø 120
N°1 Ø 140 |
| Suction capacity |
m3/h |
6000 |
6000 |
| In feed table lenght |
mm |
2200 |
2200 |
| Weight |
kg |
1200 |
1410 |
 |
|
|
