| Circular
Saw and Scoring Unit |
|

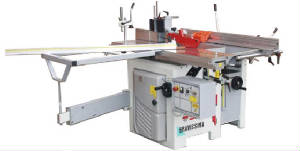

PRO 400i-S7 |
| Table dimensions |
mm |
260x1130 |
| Rotation speeds |
g/min.
r.p.m. |
4500 |
| Blade diameter |
Ømm |
250 |
| Blade bora diameter |
Ømm |
30 |
| Max cutting height of scoring blade at 90° |
mm |
80 |
| Max. distance between blade and fence |
mm |
610 |
| Max. cutting height at 45° |
mm |
(50) |
| Blade inclination |
|
45° |
| cutting capacity |
mm |
1450/1600 |
| Standard accessories |
|
|
| N.1 screw-type clamp |
|
* |
| Sharpe fence |
|
* |
| Service wrenches |
|
* |
| Overload protection |
|
* |
| Mortiser chuck |
|
* |
| Front and rear guard on planer fence |
|
* |
| Guards on mortiser chuck |
|
* |
| 3 pcs planing knives |
|
* |
| Squaring-off carriage |
|
|
| Planer saw guide |
|
* |
| Lateral guide |
|
* |
| Workpièce rest |
|
* |
| Saw blade guard |
|
* |
| Optional accessories |
|
|
| Squaring-off carriage |
mm |
2100 |
| Squaring-off carriage |
mm |
2500 |
| 3-phase motor (Spindle moulders) 4 HP |
HP
Kw |
4
3 |
| Knife sharpening device |
|
* |
| *100 mm Ø thicknesser dust hood |
|
* |
| Extraction unit 0,5 HP -80 mm Ø |
|
* |
| Set of wheels with feeding steering bar |
|
* |
| *Contouring fence |
|
* |
| 3-phase motor (thicknesser) 5,5 HP |
|
* |
| 1-phase motor HP 3 KW 2,2 |
|
* |
| Surface Planer |
|
|
| able dimensions |
mm |
400x1800 |
| Tilting of fence |
|
45° |
| Cutterblock diameter |
mm |
70 |
| Cutterhead rotation speed |
g/min
r.p.m. |
5700 |
| N. of knives |
|
3 |
| Knives dimensions |
mm |
400x20x3 |
| Max table adjustement |
mm |
4 |
| hicknessing Machine |
|
|
| Table dimensions |
mm |
400x775 |
| Max. cutting depth |
mm |
5,5 |
| Feed speed |
m/min |
7 |
| Max. working height |
mm |
220 |
| Min. working height |
mm |
7 |
| Cutterhead rotation speed |
g/min
r.p.m. |
5700 |
| Mortiser |
|
|
| Table dimensions |
mm |
250x500 |
| Longitudinal stroke |
mm |
200 |
| Trasversal stroke |
mm |
100 |
| Vertical stroke |
mm |
90 |
| Churck |
Ømm |
16 |
| Churck rotation speed |
g/min
r.p.m. |
5700 |
| Sharpie |
|
|
| Table dimensions |
mm |
260x1130 |
| Rotation speeds |
g/min
r.p.m. |
4300/6000 |
| Standard shaft diameter |
mm |
30 |
| Spindle length |
mm |
105 |
| Shaft vertical stroke |
mm |
115 |
| Max. tool diameter |
mm |
160 |
| Max. tenoning depth |
mm |
55 |
| Diamater f scaring saw |
mm |
100 |
| Diamater of scaring shaft |
mm |
30 |
| Max. cutting height of scoring blade at 90° |
mm |
5 |
| Max tilting scoring table |
|
45° |
| Max. cutting height of scoring blade at 45° |
mm |
3,5 |
| Scoring shaft speed |
g/min
r.p.m. |
7500 |
| Tenoning carriage |
|
|
| Carriage dimensions |
mm |
1500x290 |
| *Carriage stroke |
mm |
1450/1600 |
| 3-phase motor power |
Kw |
4-3-3
3-2,2-2,2 |
| 1-hase motor power |
|
-- |
| Weight |
Kg |
655 |
